l Packaging Tube
l Part Status Active
l Taper Linear
l Configuration Potentiometer
l Number of Circuits 1
l Number of Taps 1024
l Resistance (Ohms) 20k
l Interface SPI
l Memory Type Volatile
l Voltage – Supply 9V ~ 33V, ±9V ~ 16.5V
l Features Cascade Pin
l Tolerance ±1%
l Temperature Coefficient (Typ) 35ppm/°C
l Mounting Type Surface Mount
l Supplier Device Package 14-TSSOP
l Package / Case 14-TSSOP (0.173", 4.40mm Width)
l Operating Temperature -40°C ~ 105°C
l Resistance - Wiper (Ohms) (Typ) 60

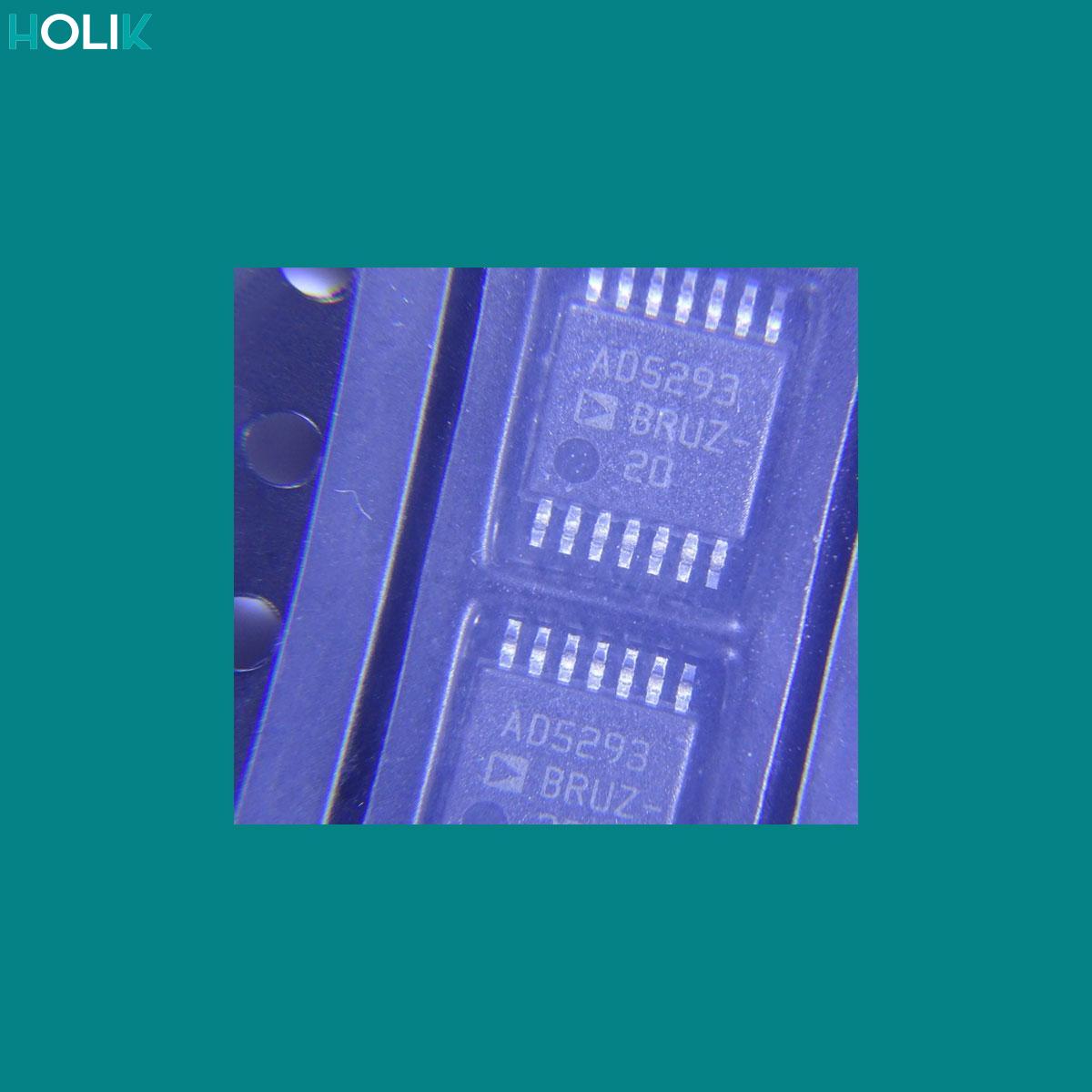

l Base Product Number AD5293
l APPLICATIONS
l Mechanical potentiometer replacement Instrumentation:
gain and offset adjustment Programmable voltage-to-current conversion Programmable filters, delays,
and time constants Programmable power supply Low resolution DAC replacements Sensor calibration
